Dahua DH-IPC-PDW3859-A180-AS-PV-ATC | 2x4MP TiOC Duo Panorama Eyeball | 180° | Corrosion-resistant NEMA 4X | Active Deterrence | Two-way Audio | IP67 | White

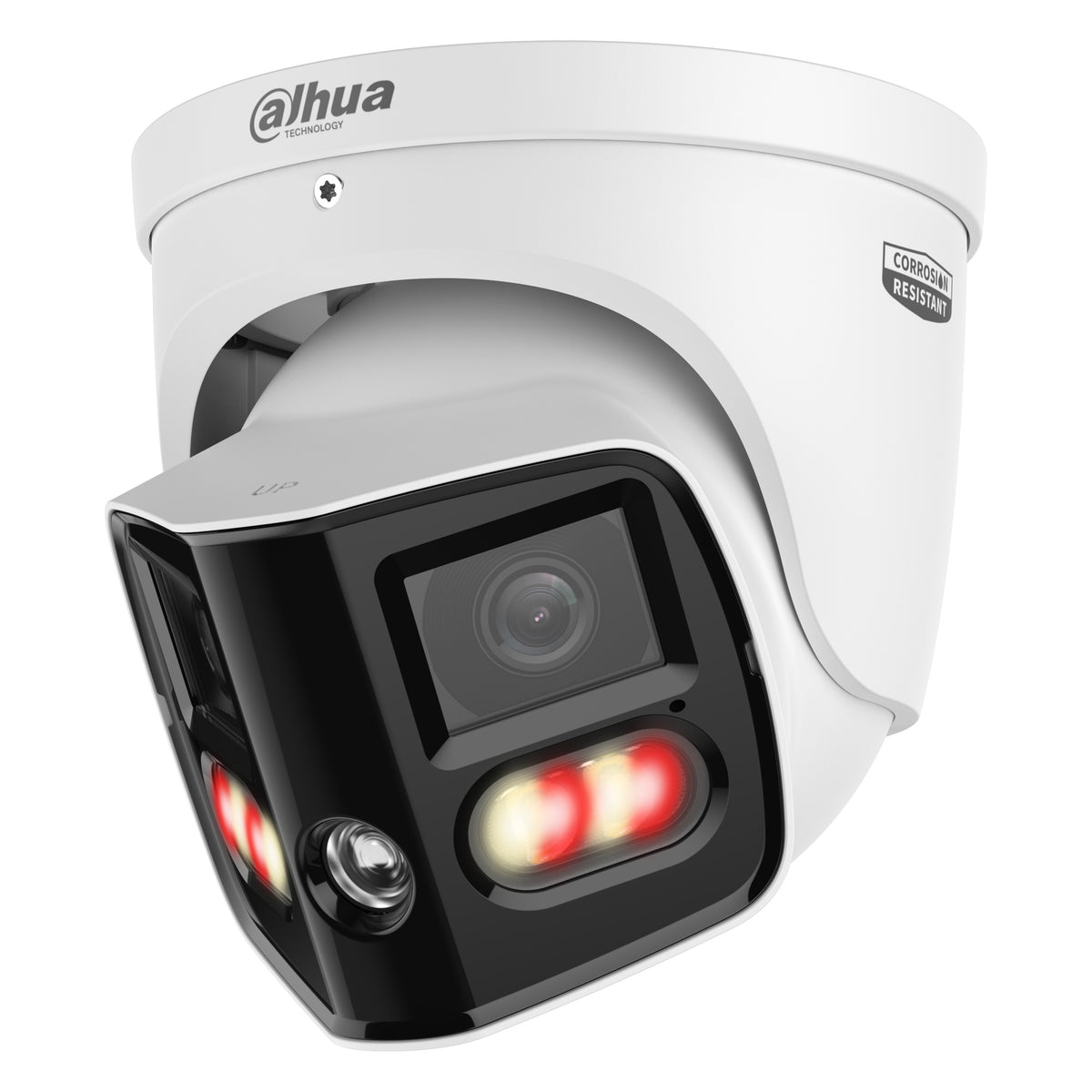

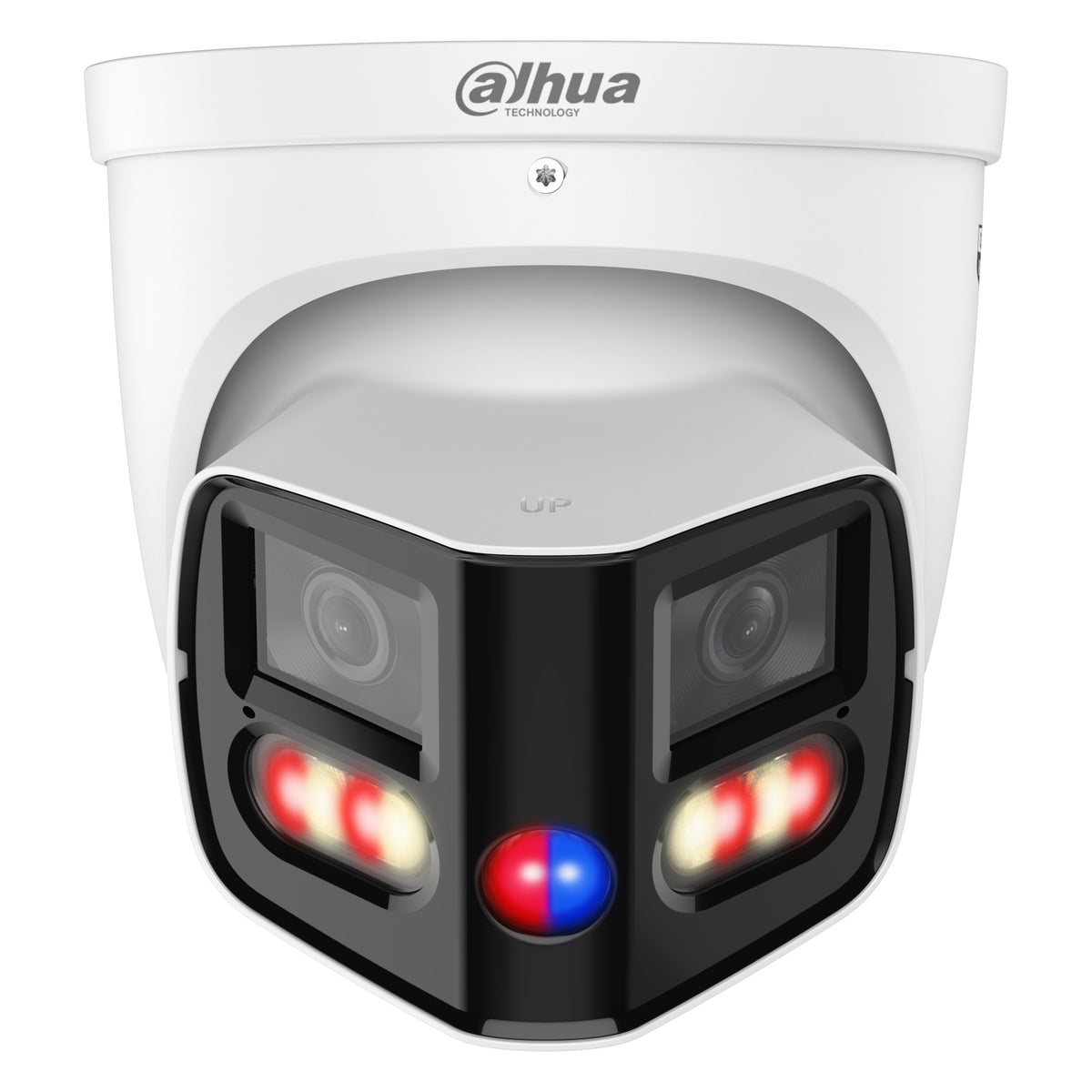

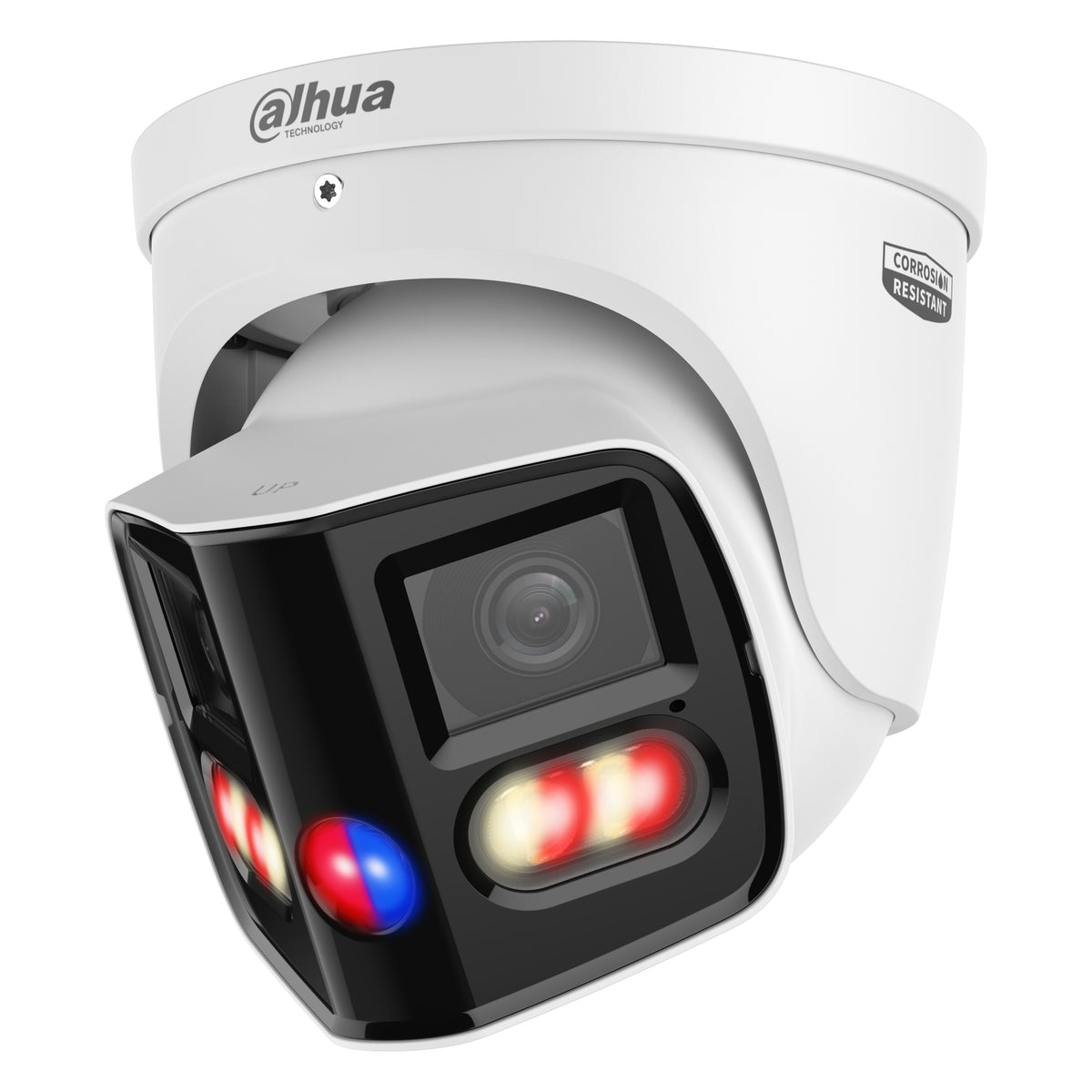

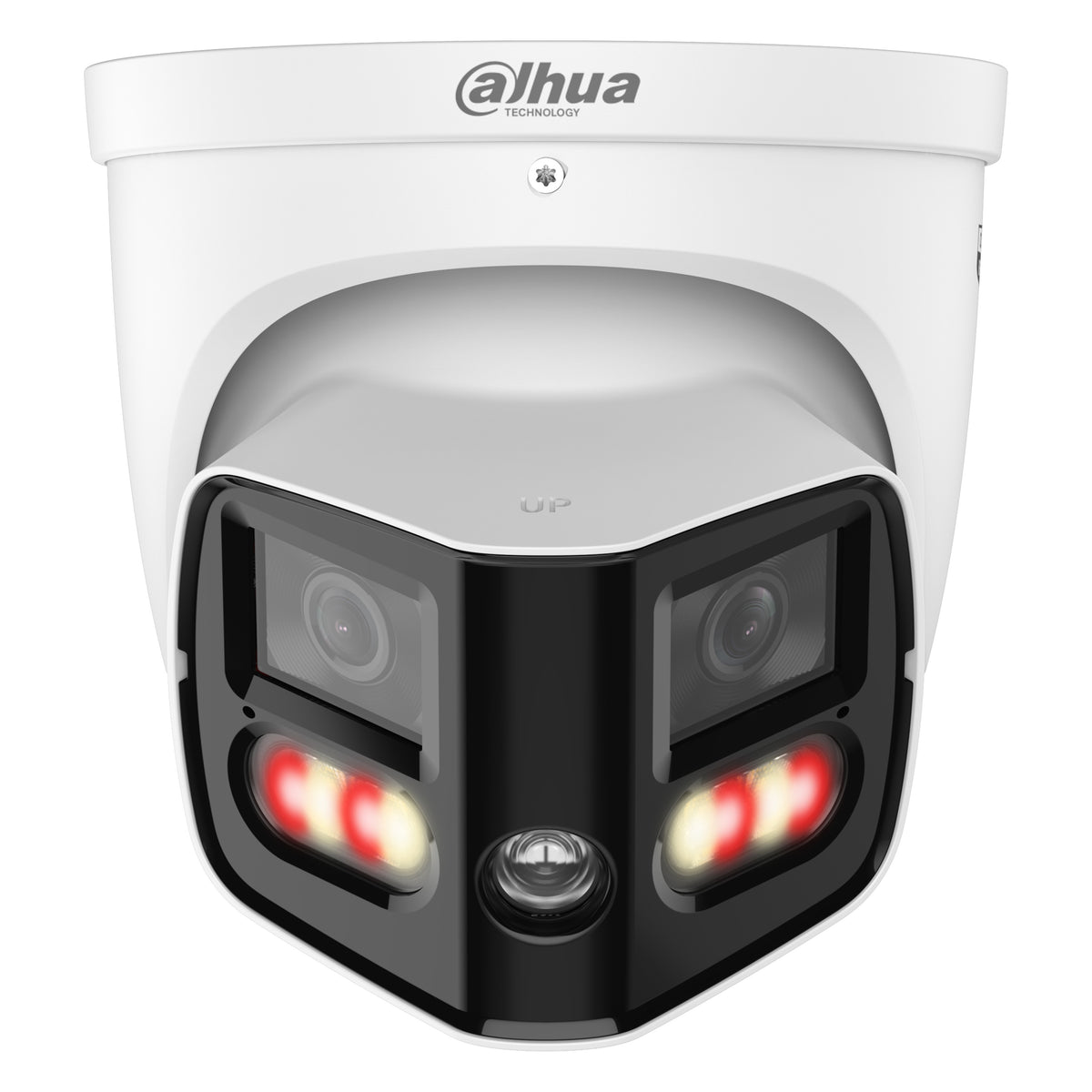

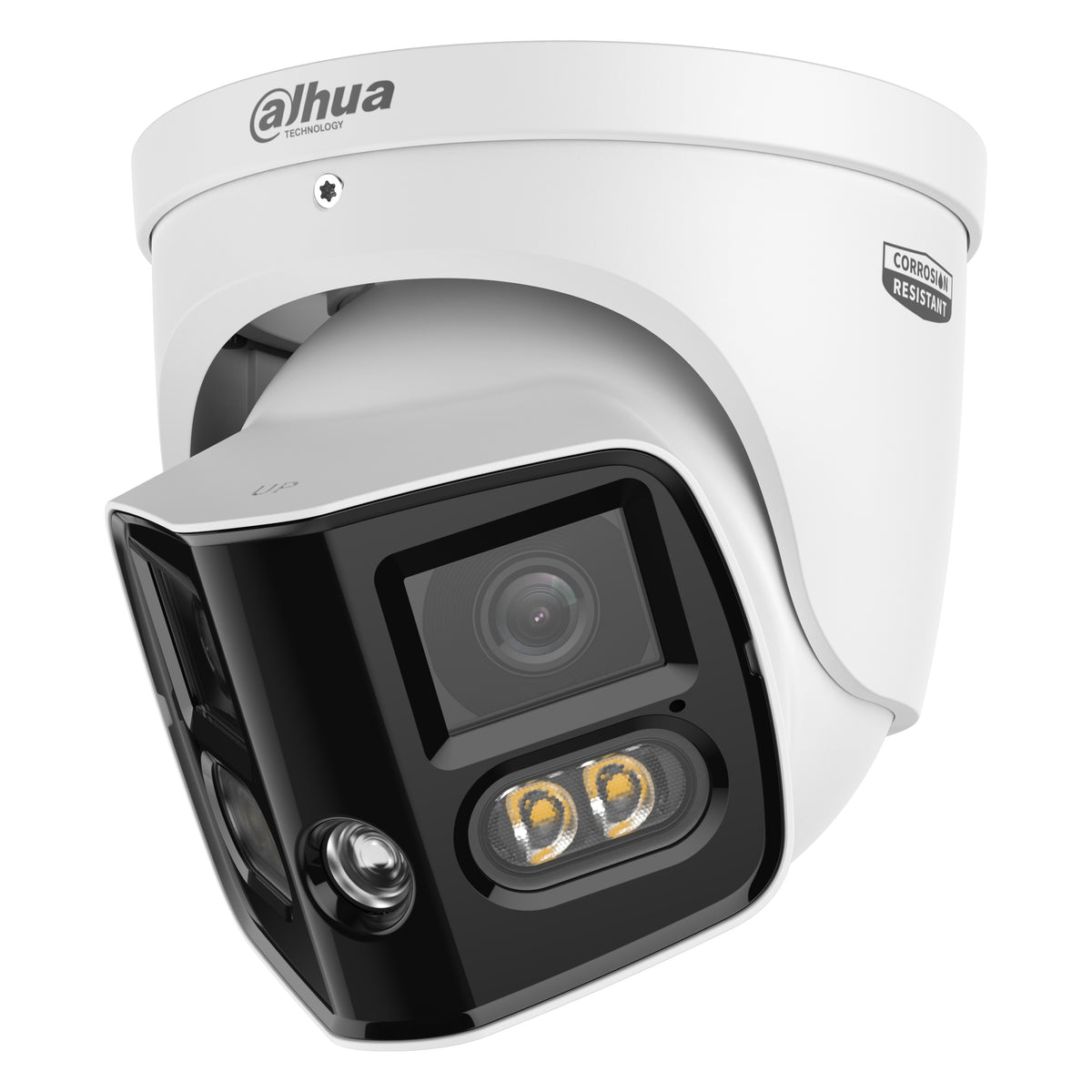

Dahua DH-IPC-PDW3859-A180-AS-PV-ATC — 2x4MP TiOC Duo Panoramic Eyeball

The Dahua DH-IPC-PDW3859-A180-AS-PV-ATC is a panoramic eyeball camera with two 4MP sensors that combine to create a single 180° image (4320 × 1944). This ATC version has an anti-corrosion housing (NEMA 4X, professional protection), making it suitable for coastal areas, ports, and chemical environments. Features warm light, active deterrence, SMD 4.0, and two-way audio.

Specifications

• Resolution: 2x4MP, combined 4320 × 1944 @ 20 fps
• Sensor: 1/2.7" CMOS (2x)
• Lens: 2.8mm fixed, F1.4
• Field of view: 180° horizontal, 72° vertical
• Night vision: Multi-core illumination: IR and warm light up to 30m
• AI: Perimeter protection with human/vehicle classification, loitering and lingering detection, face detection, SMD 4.0
• Deterrence: Light and built-in speaker (max. 110 dB at 10 cm)
• Audio: Two-way: built-in dual microphones + speaker; 1 audio in / 1 audio out
• Alarm: 1 in / 1 out
• SD card: Yes, max. 512GB
• Power supply: 12V DC / PoE+ (802.3at)
• Network: RJ-45 10/100/1000 Mbps
• Protection rating: IP67; anti-corrosion NEMA 4X
• ONVIF: Yes (Profile S/G/T/M)
• Housing: Anti-corrosion aluminum alloy
• Dimensions: 135.2 × Φ122.0 mm
• Color: White
• App: Dahua (DMSS)
• Warranty: 3 years

Benefits

• 180° panoramic image with a single camera
• Anti-corrosion housing for harsh environments
• Active deterrence and two-way audio
• SMD 4.0 and face detection
